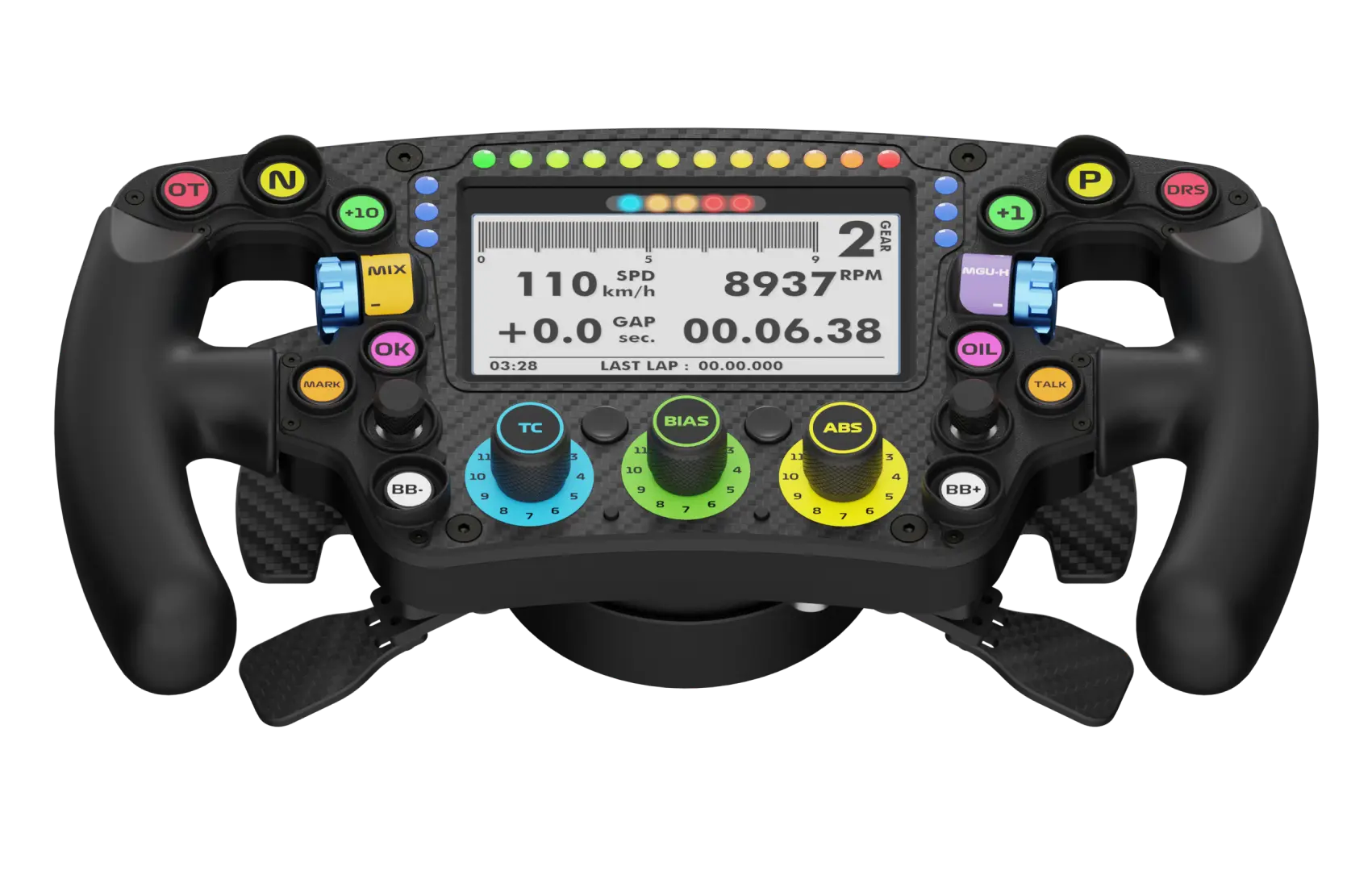

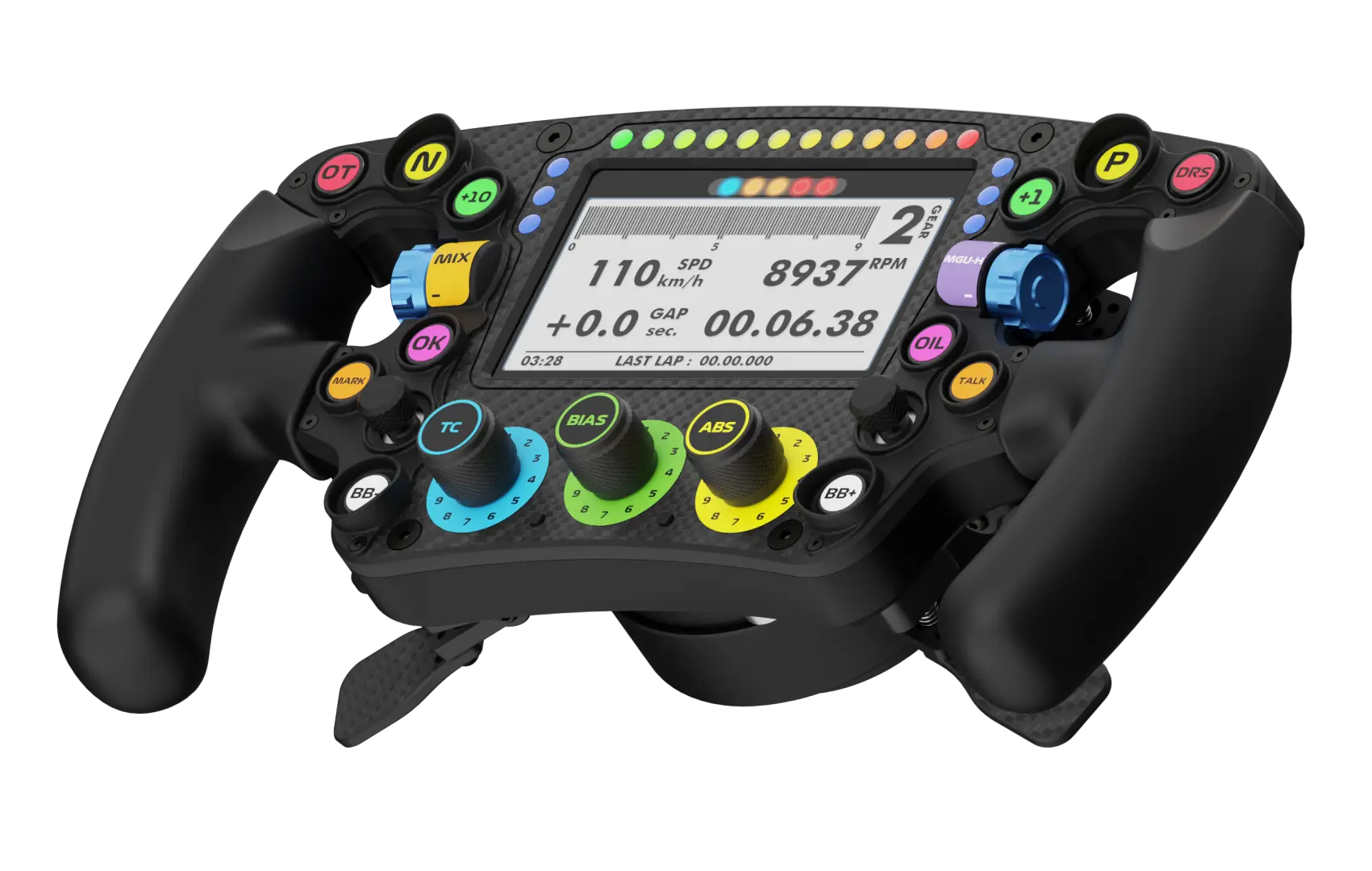

Leoxz XF1 Pro 3K Wheel

TECHNICAL SPECIFICATIONS

• 275mm diameter polyurethane grip, produced with high-precision molds, features a special coating on its surface, and its delicate texture satisfies various driving needs.
• The back cover and paddles are processed using CNC technology and coated with black anodization for optimal appearance and extended durability.
• The front panel is made of high-quality 3K carbon fiber and the paddles are made of 3mm forged carbon fiber.
• 18 RGB LEDs customizable through SimHub.
• 4.3″ IPS screen with a resolution of 800×480 pixels and a refresh rate of 60fps, and its dashboard can be customized through SimHub.
• 16 reliable buttons, 2 seven-position multi-way switches and 3 pushable encoders.
• Included 2 anodized metal blue knobs.
• Comes with a standard magnetic shifter paddle, and optional clutch paddles are available as options.
• Clutch paddles can be set to bite point mode, axis mode, and button mode.
• All paddles use contactless Hall sensors for extended durability.
• Robust and reliable USB-XS9 interface with locking mechanism.
• 70mm diameter QR mounting hole.
• Can be connected to Leoxz Fanatec QR through the cable QR interface to unlock Fanatec base torque.
• Can only be connected via USB for wired connection.

COMPATIBLE HARDWARE

• Simagic Alpha, Alpha Mini, Alpha U
• Simucube SC1, SC2 (QR to be purchased separately)
• Moza R16, R9, R5
• Asetek Invicta, Forte DD (QR to be purchased separately)
• Fanatec DD1, DD2, CSW, CSL DD, DD Pro, ClubSport DD (Base torque must be unlocked with PHUB or Leoxz Fanatec QR, while connecting via USB)

SOFTWARE

• PC only with SimHub and SimBridge
• SimHub for obtaining telemetry data
• SimBridge is used to receive SimHub data and send to XF1

DISCOVER THE LEOXZ XF1

WHAT’S INCLUDED?

• XF1 Pro Wheel (Optional Quick Release)
• USB-XS9 Cable
• Custom stickers
• M3 Allen key
• Nylon tweezers

DOWNLOADS

XF1 Pro Manual
SimBridge
SimHub
