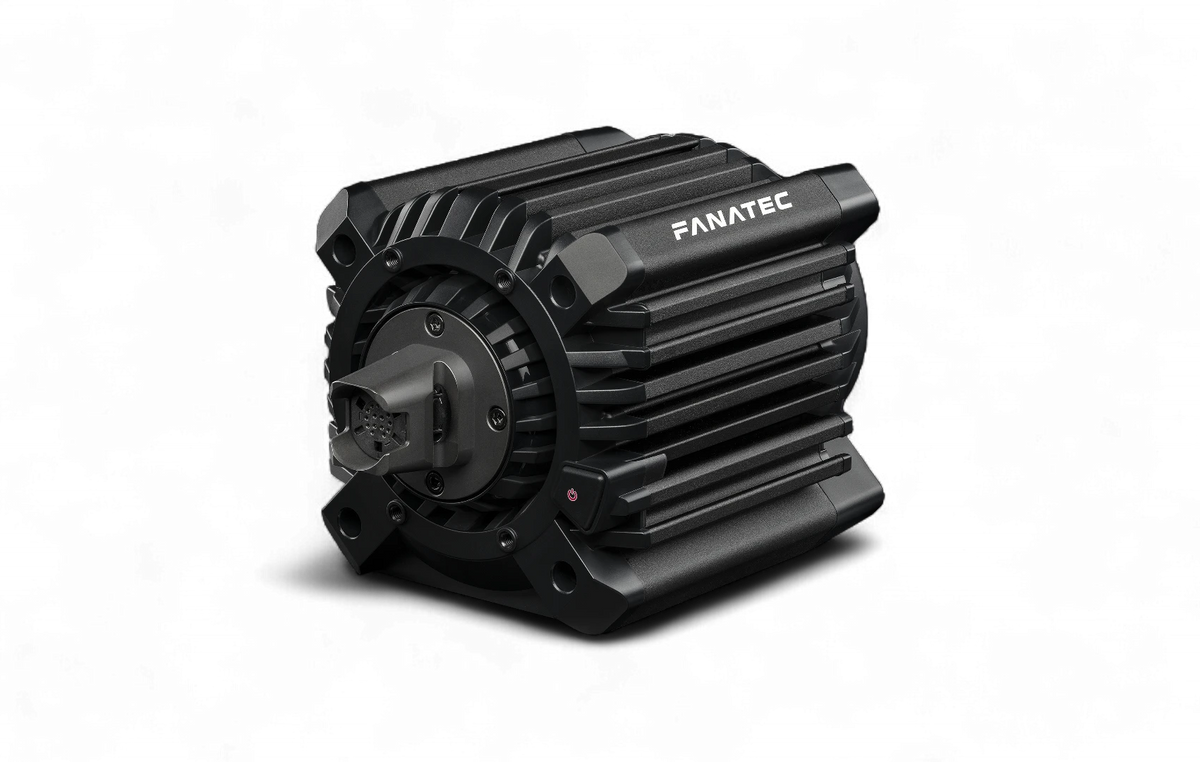

Fanatec ClubSport DD (15 Nm)

€599

The Fanatec ClubSport DD delivers 15 Nm of sustained torque with outstanding responsiveness and fluidity. The optimised angle of the rotor magnets and patented FluxBarrier technology improve efficiency and smoothness. The reinforced aluminium shaft ensures maximum robustness, while the optimised cooling system maintains performance even in the most intense sessions. FullForce technology generates high-frequency vibrations for unprecedented realism. ClubSport DD: the most advanced wheelbase Fanatec has ever made.

Low stock: 4 left

Fanatec ClubSport DD
€599
What's in the box?
  • ClubSport DD Wheel Base
  • QR2 base-side
  • Power supply
  • 4 T-nuts for rail mounting system
  • USB cable (Type-C → Type-A)
  • Quick start guide
View details
  • Fanatec ClubSport DD
  • Fanatec ClubSport DD Front
  • Fanatec ClubSport DD Side
  • Fanatec ClubSport DD Rear
  • Fanatec ClubSport DD Side
1 / 1
Press & drag to view
p3 sfondo_1 p3 sfondo_1

Our most advanced ClubSport base ever

The new ClubSport DD delivers 15 Nm of constant torque with exceptional responsiveness and dynamics, ensuring direct, realistic feedback. Your favourite driving sim is now more authentic than ever.

  • p3 immagine_1
Fanatec ClubSport DD Pin QR2

Direct Drive done right

Not all Direct Drive systems are created equal. Decades of experience in Force Feedback technology have made it possible to build numerous structural and electronic optimisations into the ClubSport DD, delivering class-leading performance.
p3 immagine_3

Absolute smoothness

The staggered-segment rotor, with an optimised magnet angle, reduces cogging, while patented FluxBarrier technology increases motor efficiency and smoothness. The result is silky steering and crisp force feedback in every driving situation.
Sfondo Fanatec

Consistent torque, lap after lap

Designed to meet the most rigorous cooling standards, the ClubSport DD is the most thermally stable wheelbase in its class. This ensures consistently uniform torque and force feedback, letting you drive with total confidence, even during the longest and most intense race sessions.

  • Fanatec ClubSport DD 12 Nm

    Real torque

    Many consumer-grade Direct Drive systems cannot sustain their stated torque, progressively reducing motor performance to avoid overheating. Thanks to its high-efficiency motor and optimised thermal layout, the ClubSport DD maintains a true 15 Nm of torque, even in the most extreme conditions, such as an endurance race with force feedback at maximum.

  • p3 immagine_5

    Feel the Grip

    The ClubSport DD's outstanding thermal stability ensures consistent performance, so you can truly trust the feedback you feel through the steering wheel. Only with consistently uniform behaviour can you feel tyre grip and drive on the limit with confidence. This base helps you build muscle memory and improve your driving skills.

Lightning-fast acceleration

The speed of the ClubSport DD's servo motor allows more precise tuning than any previous Fanatec base. The result is a responsive, communicative steering wheel, capable of conveying even the smallest details of the track while maintaining perfect stability and high resistance to unwanted oscillations.

  • p3 immagine_6

    FULLFORCE: Force Feedback 2.0 for Direct Drive

    The existing force feedback protocol was designed for gear- or belt-driven devices, the only technologies available at the time. FullForce is the new force feedback protocol developed specifically for FANATEC® Direct Drive wheelbases. Taking advantage of their instant response and the absence of mechanical play, FullForce generates high-frequency vibrations that take immersion to a level never seen before.

  • p3 immagine_7

    Precision response

    The motor's exceptional response speed, combined with a high-performance processor, makes every reaction fast, dynamic and stable. This behaviour enhances both traditional force feedback signals and the new FullForce effects in games that support them.

p3 immagine_8

Our strongest motor shaft ever

The aluminium shaft inside the motor is the strongest Fanatec has ever made. The position of the slip ring electronics made it possible to increase its wall thickness, while the all-aluminium bearing support provides greater resistance to radial loads, rotational precision and superior protection against interference and static electricity.
p3 immagine_9

QR2

The ClubSport DD was designed from the outset to integrate the QR2 system. The QR electronic module is now fully integrated into the motor shaft, significantly improving its robustness and structural reliability.

Technical specifications

Force feedback system
Direct Drive
Torque
15 Nm
Degrees of rotation
Up to 2520°
Cooling system
Passive (fanless)
Quick Release
Fanatec QR2 (base-side)
Ports
Power, USB-C, Shifter 1, Shifter 2, Pedals, Handbrake, Channel
Product dimensions
248 (L) × 160 (W) × 163.5 (H) mm
Product weight
10.6 kg
Warranty
Three years (in accordance with applicable national regulations)
Features
  • 15 Nm Direct Drive motor for consistent, precise torque
  • FullForce technology for detailed, low-latency driving effects
  • Passive cooling with consistent performance in all conditions
  • QR2 quick release system derived from motorsport
  • Compatible with Windows PC (also Xbox with a dedicated licensed steering wheel)
  • Standard and Advanced tuning menus for beginners and experts
  • High-resolution contactless Hall position sensor for maximum steering precision
  • T-nut rail mounting system for quick, secure installation
Compatibility

Compatible Platforms

  • PC
  • XBOX

Compatible peripherals

  • All Fanatec steering wheels (with the QR2 system)
  • All Fanatec pedals (an adapter cable may be required for models without an RJ12 connection)
  • Shifter ClubSport (all versions)
  • Handbrake ClubSport
  • All cockpits by Fanatec
  • Table clamp ClubSport DD Table Clamp
  • Table clamp ClubSport Table Clamp V2
  • Podium mounting brackets (the ClubSport DD base includes M6 T-nuts for side mounting; Podium brackets require M6 bolts and washers)
