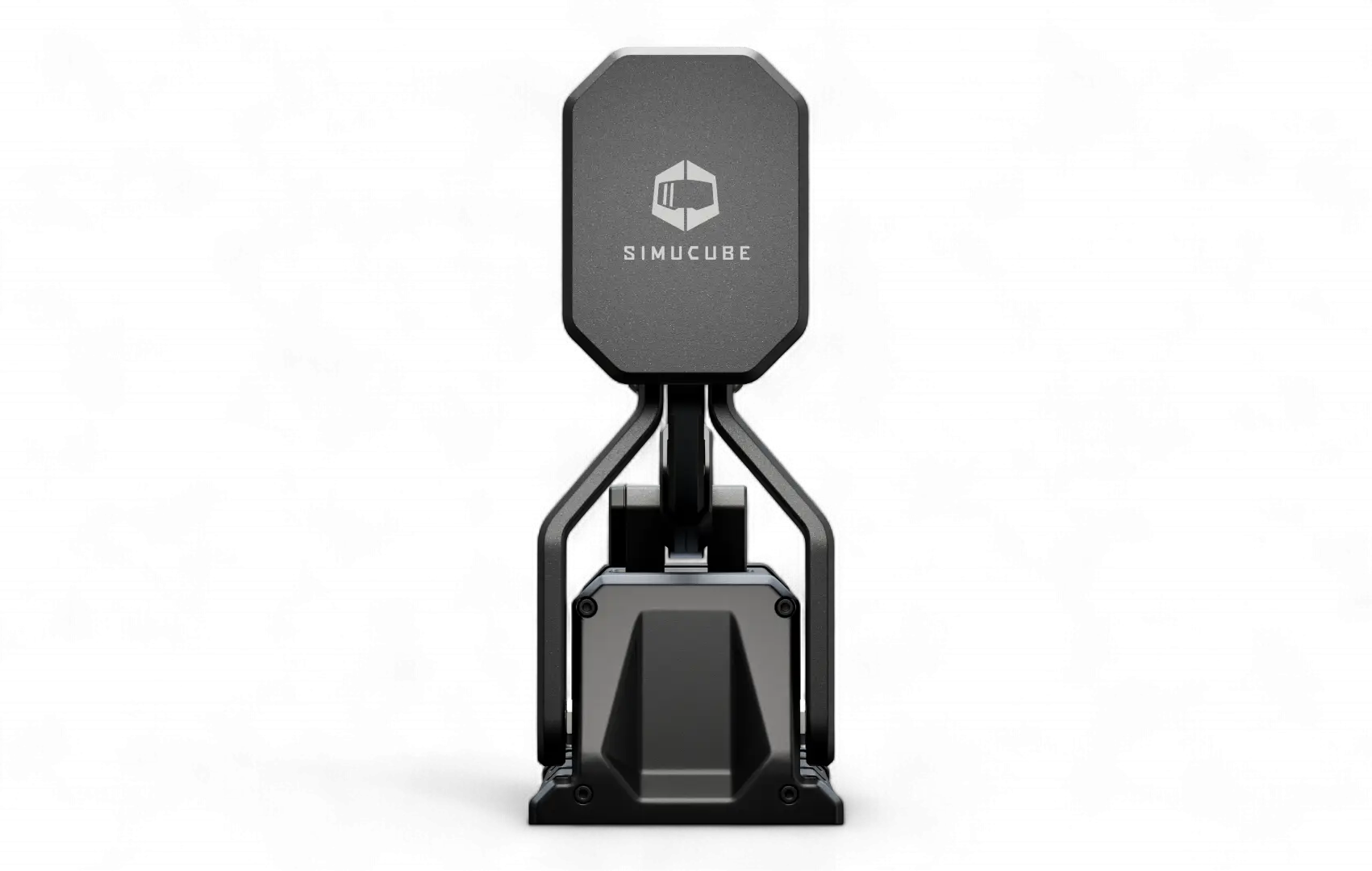

Simucube ActivePedal Pro
Price range: €2.152 through €2.347
The ActivePedal Pro redefines realism in sim racing. With 110 kg of force and unlimited digital adjustments, it faithfully replicates the driving feel of any race car, straight from the software. Its millimeter precision ensures impeccable control, while continuous updates enhance its performance over time. Experience authentic track adrenaline, instantly switching from a GT to a Formula car, without compromising on realism and precision.
| PAYMENTS |  |
| COMPATIBILITY | Personal Computer |
| WARRANTY AND SUPPORT |  |
- Description
- Technical specifications
- What is included?
- Differences between Pro and Ultimate
- Reviews (0)
REVIEW
Entering the world of professional driving simulation has never been easier. Discover our platform optimized for Italian Sim Racing.
From fully Italian assistance with ultra-fast response times, to manuals in Italian and free content and settings for your steering wheel
Our features
Fast Shipping
Shipping within 7 working days (unless out of stock)
24/7 Italian Support
We're here to help, write to us at: [email protected]
24 Months Warranty
Buy Simagic with peace of mind with a 2-year warranty
Secure Payments
Use the best payment methods like PayPal and Stripe
Technical specifications

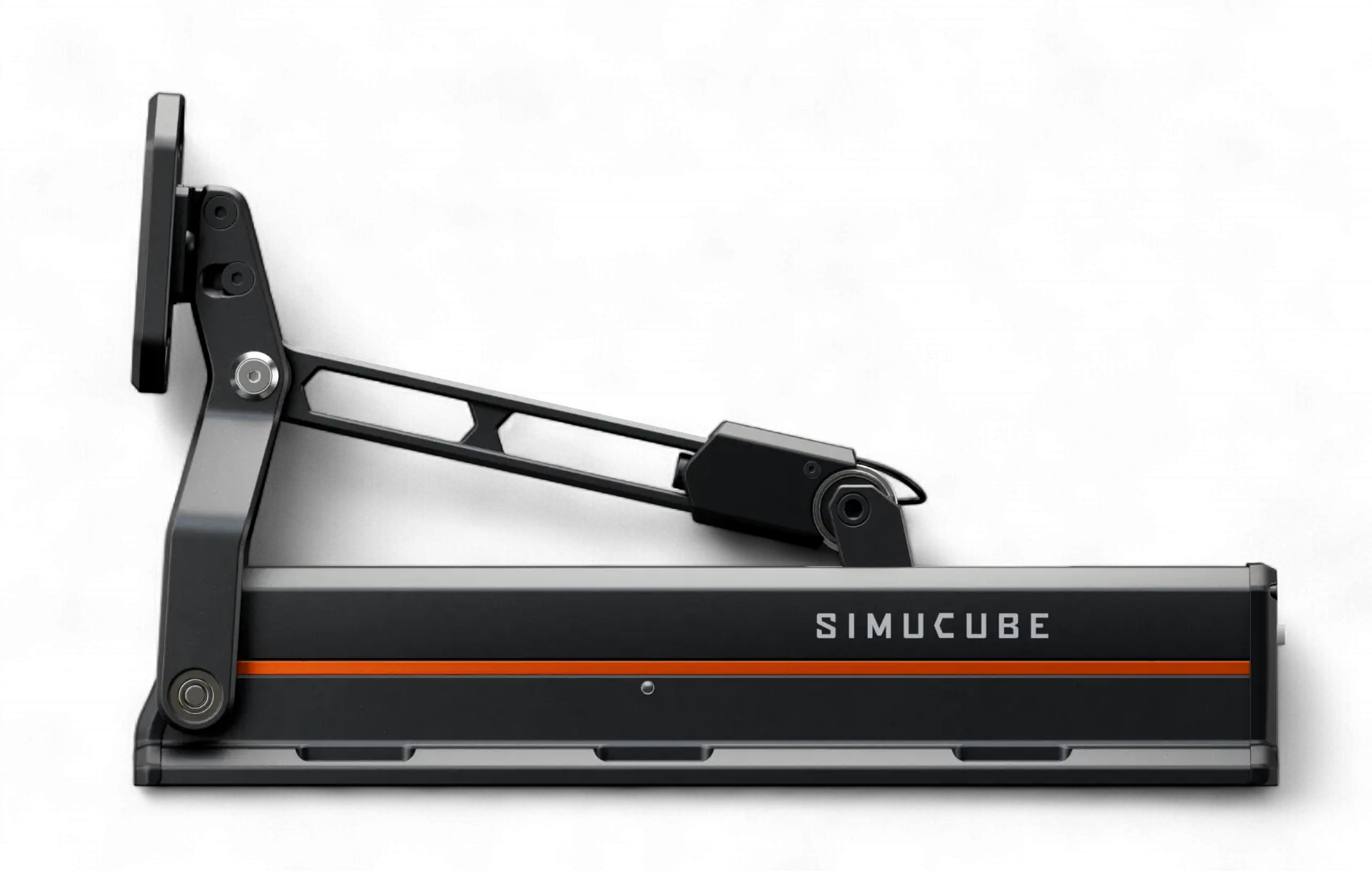

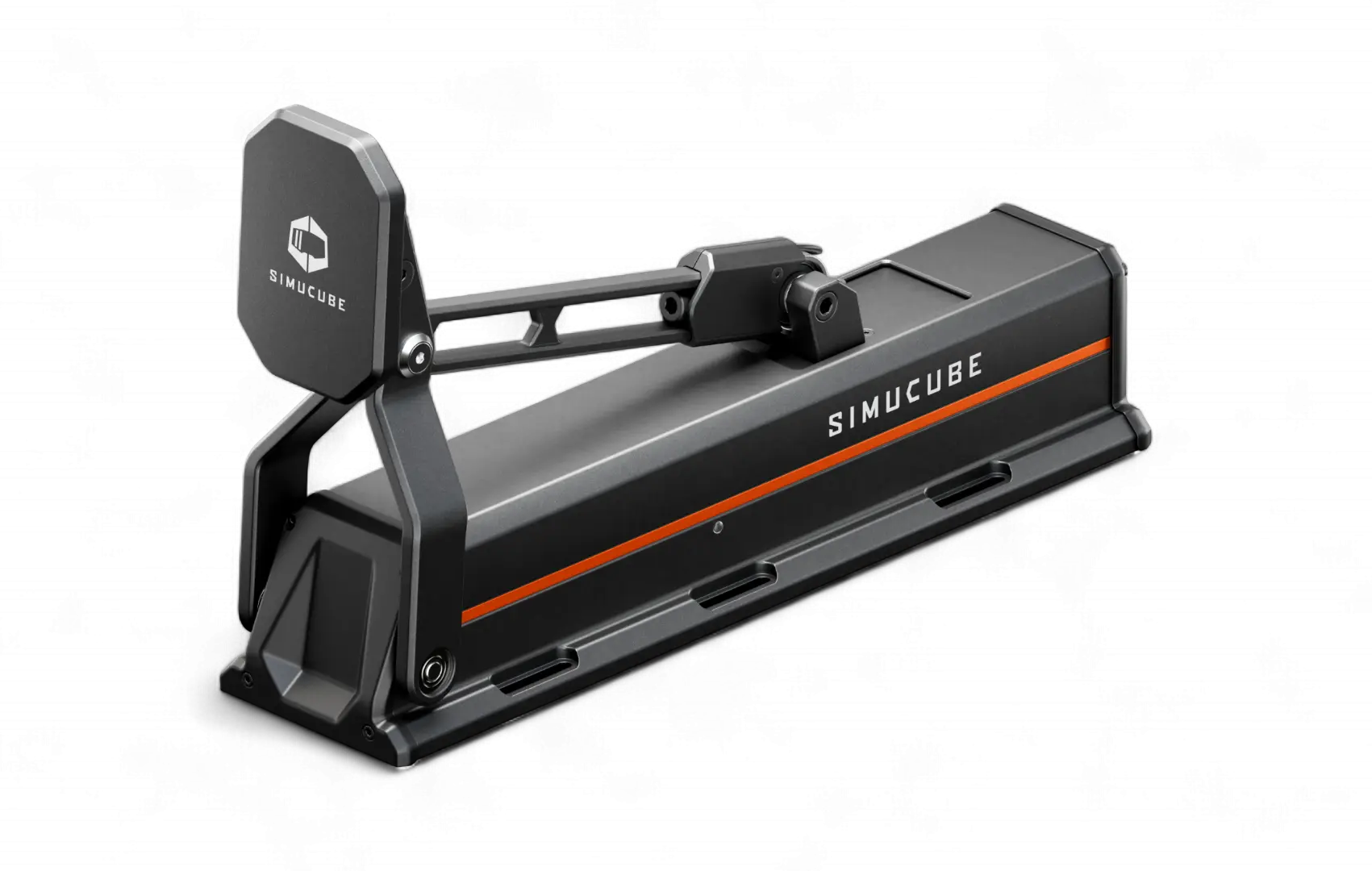

Simucube ActivePedal Pro
- Weight: 5.8 kg
- Dimensions: 100 mm x 250 mm x 400 mm
- Pedal movement: Download file here
- Mounting hole dimensions: 6 x M5 slots
Active Pedal Pro Features
- Force feedback up to 110 kg
- G-force simulation
- ABS simulation
- RPM-based feedback
- Configurable as brake, throttle, or clutch
- Complete adjustment of all pedal aspects:
- Forces
- Travel length (max 62 mm / 79 mm)
- Response curves
- Damping
- Friction
- Compatible with Simucube Link Hub
- Continuous software updates for optimized performance
- Pedal height adjustment: 20 mm
- Pedal angle adjustment: 18°

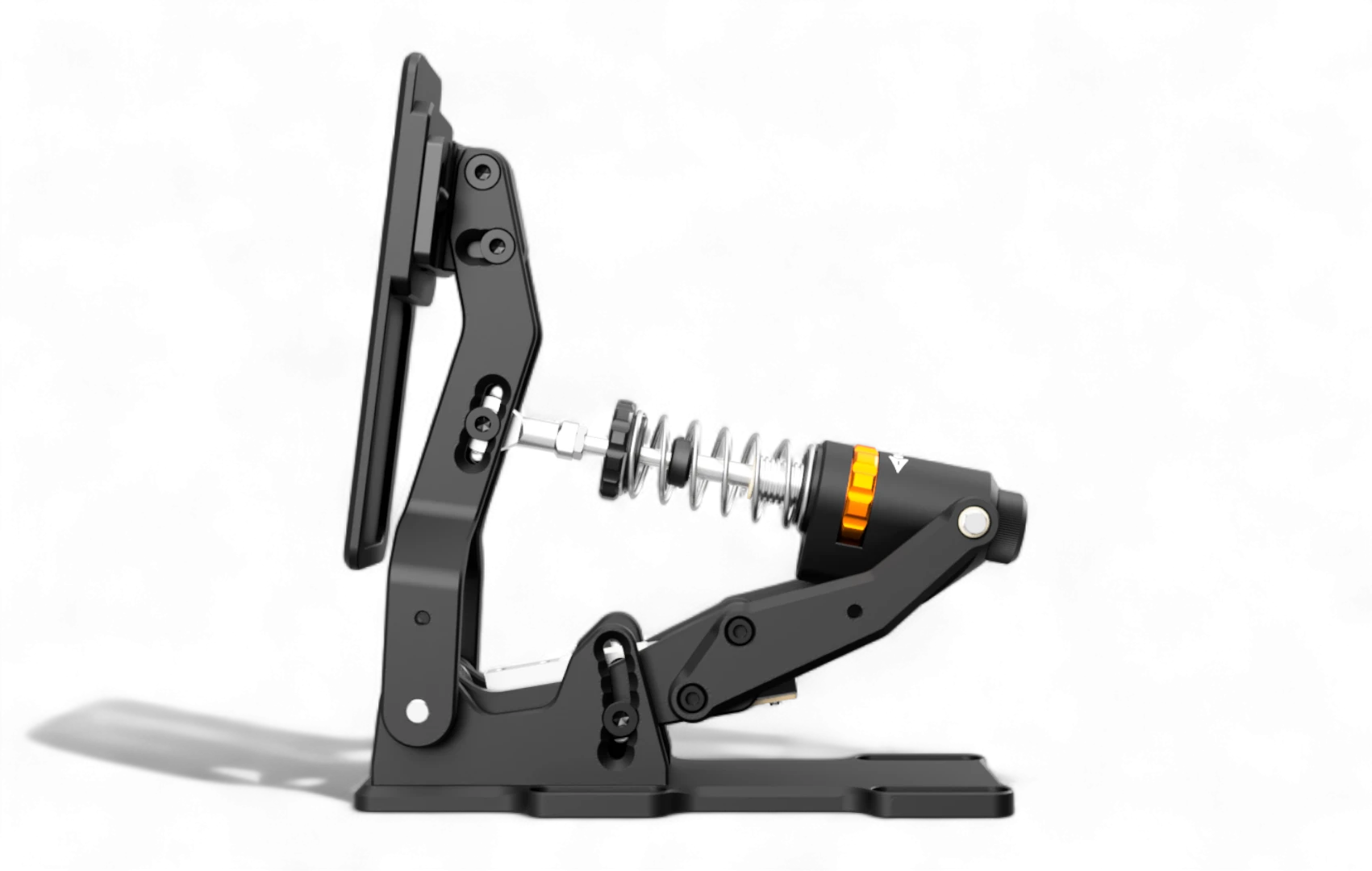

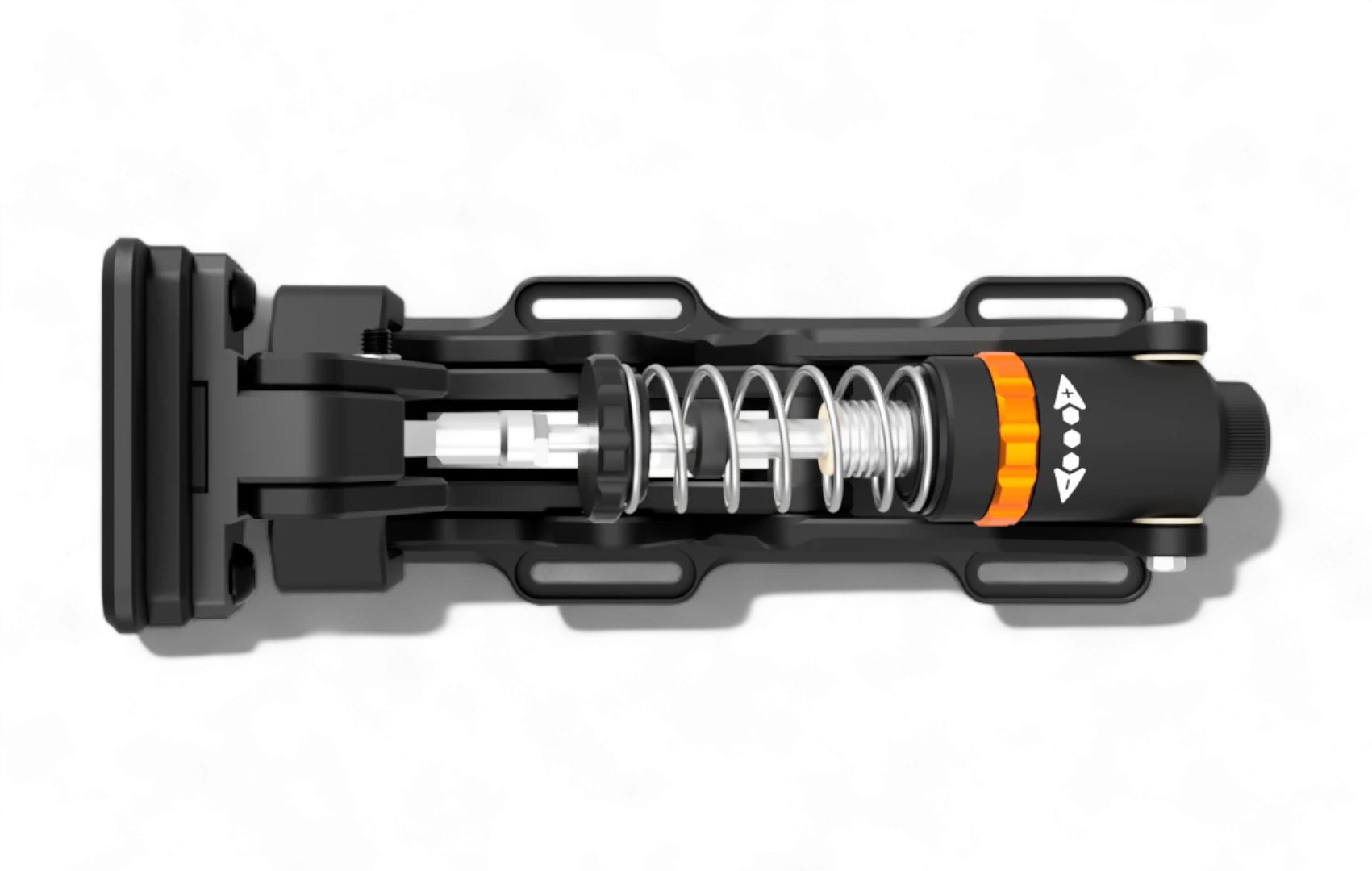

Simucube Throttle
- Dimensions: 80 mm x 245 mm x 230 mm
- Weight: 1.7 kg
- Travel distance: 48 mm – 84 mm (min – max)
- Mounting hole dimensions: Download here
Simucube Baseplate
- Dimensions: 391 mm x 65 mm x 566 mm
- Weight: 4.2 kg
- Vertically adjustable: 25 mm
- Technical drawing: Download file here
What is included?

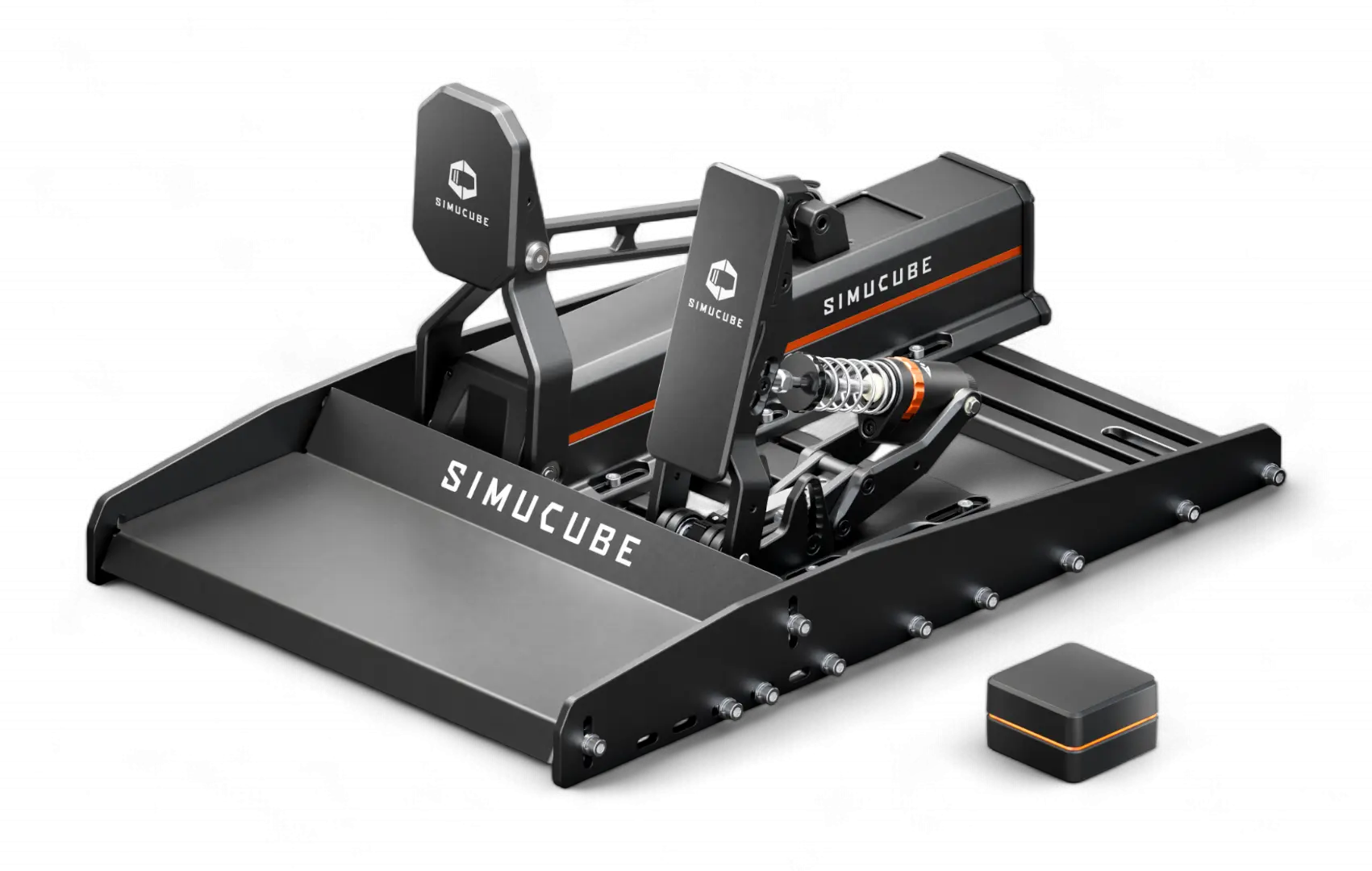

Simucube ActivePedal Pro Primary Set
- Simucube ActivePedal
- Power supply
- Simucube Link
- USB cable
- Ethernet RJ45 cable (used to connect Simucube Link and ActivePedal)
- Mounting screws
- Torx Allen key
- Quick guide
- Stickers
Simucube Throttle
- 1x Simucube Throttle
- 1x RJ12 cable (50 cm)
- 1x TX 30 key
- 1x Hex key (4 mm)
- 1x Quick guide
- 1x Extra spring, less rigid but longer, provides a flatter spring curve
- 1x Installation kit
If the BasePlate variant is chosen, the following is also included:
Simucube Baseplate
- Weight: 4.2 kg
- Dimensions: 566 mm x 391 mm x 65 mm
- Vertical heel adjustment: 25 mm
- Technical drawing: Download here
Differences between Pro and Ultimate
| Feature | ActivePedal Pro | ActivePedal Ultimate |
|---|---|---|
| Maximum pedal force | 110 kg | 150 kg / 120 kg |
| Maximum pedal travel | 62 mm / 79 mm | 74 mm |
| Pedal height adjustment | 20 mm | 22 mm |
| Pedal offset adjustment | No | 25 mm |
| Angular adjustments | 18° | 18° |
| Dimensions (W×H×D) | 100 × 250 × 400 mm | 100 × 255 × 418 mm |
| Weight | 5.8 kg | 6 kg |
| Extension support | Two passive inputs for load cells | Two passive inputs for load cells |
| Warranty | 3 years | 5 years |
| Price (excluding VAT) | 1483€ | 1999€ |
