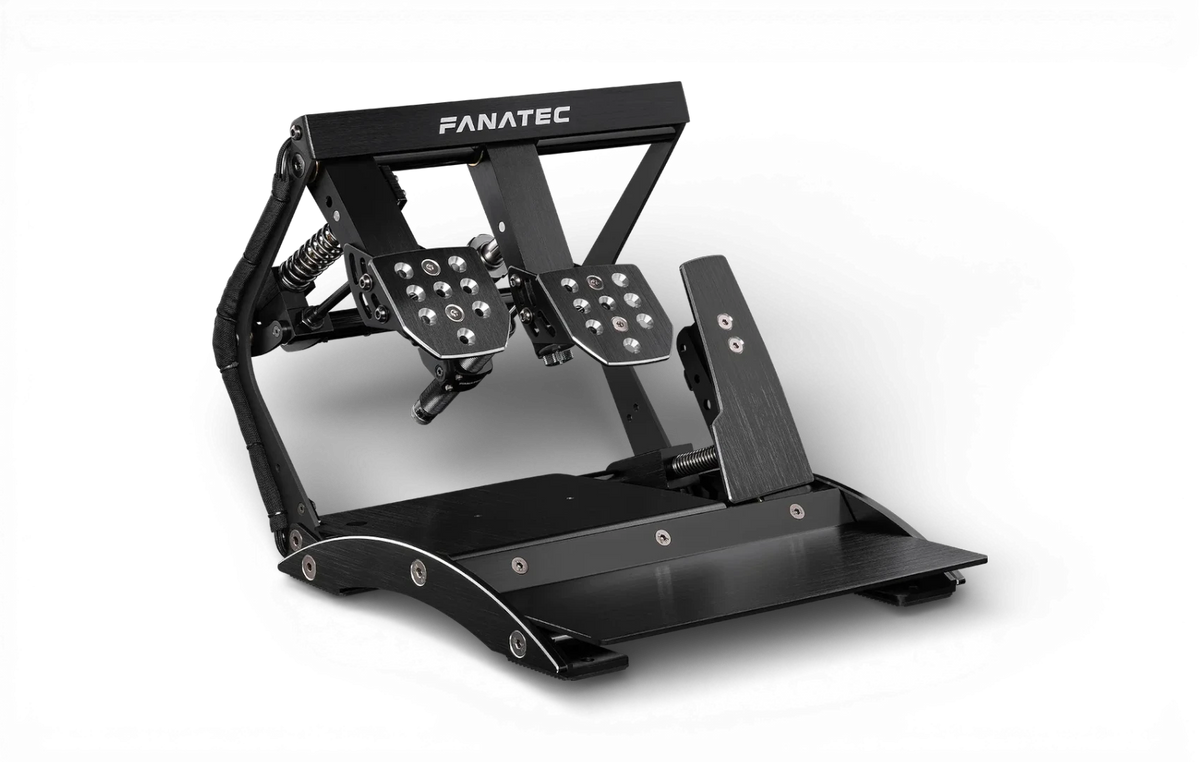

Fanatec ClubSport V3 Inverted Pedals

€429

The Fanatec ClubSport V3 Inverted takes realism to the max thanks to its inverted pedal design inspired by real race cars. The all-metal construction ensures rigidity and complete reliability, while the magnetic contactless Hall sensors on the throttle and clutch guarantee consistent precision over time. The 90 kg load cell brake, with adjustable resistance and travel, delivers a progressive, easily modulated response, ideal for refining your braking technique lap after lap.

Low stock: 1 left

Fanatec ClubSport V3 Inverted Pedals
€429
What's in the box?
  • ClubSport Pedals V3 Inverted
  • ClubSport Pedals V3i Damper Kit (pre-installed on the brake pedal)
  • 3 pedal extensions (2 pre-installed, 1 as an accessory)
  • 3 D-shaped pedal plates including mounting screws
  • 1 stiff throttle spring
  • 2 stabiliser feet including mounting screws
  • RJ12 connection cable (150 cm)
  • USB cable (180 cm)
  • Allen key for damper adjustment
  • Bottle of lithium grease
  • Quick start guide
View details
  • Fanatec ClubSport V3 Inverted Pedals
  • Fanatec ClubSport V3 Inverted Pedals
  • Fanatec ClubSport V3 Inverted
1 / 1
Press & drag to view
Fanatec backgound Fanatec backgound

Pure realism

Realism taken to the max is the philosophy behind these inverted pedals: pivot points, layout, distances and overall feel faithfully replicate those of a real car, for an authentic and immersive driving experience.

  • Fanatec ClubSport V3 Invertita
ClubSport Pedaliera V3 Invertita

Inverted clutch and brake.

The clutch and brake pivot points are positioned at the top of the pedals and fixed to an extremely sturdy frame, just as you would expect from the Fanatec ClubSport series.

The longer pedal travel and carefully designed distances are inspired by real cars in every detail, for an authentic and consistent driving feel.
ClubSport Pedaliera Invertita V3

Brake pedal with adjustable damper

The pedal set comes with the adjustable-resistance ClubSport Damper Kit, pre-installed on the brake pedal and ready to use. Combined with tool-free brake resistance adjustment (as on the V3), it delivers pure realism from the very first use, straight out of the box.
P2 immagine_sfondo_2 - fanatec Sfondo F1

Improved braking

All-metal structure with advanced features, in keeping with the tradition of the ClubSport Pedals V3 and the models that came before them.

  • ClubSport Pedaliera V3 Invertita regolabilita

    Maximum adjustability

    The pre-installed configuration offers a realistic feel straight away, while the many configuration options provided by the pedal extensions and interchangeable D-shaped pedal plates let you adapt the ergonomics and position to your driving style.

  • ClubSport Pedaliera V3 Invertita feedbak

    Pedals with Vibration Feedback.

    The elastomer stack above the load cell sensor provides progressive, robust resistance under compression, ensuring an authentic and controlled braking feel.

P2 immagine_sfondo_2 - fanatec Sfondo F1 P2 immagine_sfondo_2 - fanatec Sfondo F1

Advanced technology

Nothing makes you faster than a high-end pedal set. That is why we use the most advanced technologies, designed to give you a real competitive edge on track.

  • ClubSport Pedaliera V3 Invertita 90 kg

    Adjustable 90 kg load cell.

    The custom-developed load cell is extremely robust and far more precise than the previous generation. It lets you apply realistic, firm braking pressure, allowing you to modulate the brake through muscle tension, just like in a real car.

  • ClubSport Pedaliera V3 Invertita sensori hall

    Contactless Hall sensor with 12-bit resolution.

    The electronics have been completely redesigned, and the magnetic Hall sensors on the throttle and clutch offer four times the resolution of the previous V2 generation.

    Each axis can be calibrated directly from the steering wheel or via the driver, for precise and personalised adjustment.

Technical specifications

Configuration
Inverted three-pedal set (clutch, brake and throttle) with real-car-style top pivot
Materials
All-metal structure with CNC-machined aluminium components
Sensors
Contactless magnetic Hall sensors on throttle and clutch; load cell on the brake
Brake
90 kg load cell with tool-free adjustable resistance and travel
Precision
12-bit resolution (4096 values) on all axes
Adjustments
Full adjustment of position, pedal angle, springs and sensitivity
Mounting
Inverted design with self-supporting structure for cockpits
Finish
Full metal construction with interchangeable D-shaped pedal plates
Connection
Connection via Fanatec Wheel Base
Compatibility
Compatible with all Fanatec Wheel Bases
Calibration
Calibration via Tuning Menu or Fanatec Control Panel
Warranty
Three years
Key features
  • Top-mounted brake and clutch pivot points, just like in real cars
  • High-resolution contactless magnetic Hall sensors on throttle and clutch for long life and maximum performance
  • Pressure-sensitive brake with custom 90 kg load cell
  • Adjustable brake stiffness and travel without tools
  • 12-bit resolution (4096 values) on all axes
  • Alternative D-shaped racing pedal plates with a curved design
  • Pedal extension to adjust the angle of the plate and of the entire pedal arm
  • Adjustable brake sensitivity via the steering wheel's Tuning Menu, even during a race
  • Vibration motor on the throttle to signal loss of traction and oversteer (game support via Fanatec Wheel SDK)
  • Vibration motor on the brake to simulate ABS and wheel lock-up (compatible with all games; dynamic control via Fanatec Wheel SDK)
  • Throttle design with quick-swap springs; two springs of different stiffness included
  • Damper Kit pre-installed on the brake; optional throttle Damper Kit (hydraulic resistance adjustable via a knob)
  • Full cross-platform compatibility, depending solely on the connected Wheel Base/Racing Wheel
  • All-CNC-machined aluminium construction
  • Fully adjustable: pedal plate position and angle, throttle spring stiffness, brake sensitivity and travel
  • Compatible with Colour Kits for aesthetic customisation (note: the Colour Kit heel rest is shorter than the standard V3i one)
Compatibility

Platform Compatibility

PC

  • When connected to a Fanatec Wheel Base / Racing Wheel, it is compatible with all racing games. For more details, please refer to the product page of the connected base.
  • It can work with steering wheels of any brand (Logitech, Thrustmaster, etc.) when connected to a PC via USB and if the game supports a second controller.

PC games that support a second USB controller:

  • iRacing
  • Assetto Corsa
  • Project CARS
  • GTR 2
  • Race 07
  • rFactor
  • Live for Speed
  • …and many more

Consoles

  • Can only be used on console when connected via a Fanatec Wheel Base / Racing Wheel.
  • Does not work on console via a direct USB connection or using the ClubSport USB Adapter.

Peripheral Compatibility

  • Compatible with all Fanatec Wheel Bases and Racing Wheels fitted with an RJ12 pedal connector.
  • To connect Fanatec Wheel Bases with a PS/2 pedal port, a PS/2 → RJ12 cable is required (sold separately).
  • Compatible with the ClubSport Pedals V3 Brake Performance Kit.
  • Compatible with the ClubSport Pedals V3 Damper Kit (throttle pedal).
  • Dedicated connector for the ClubSport Handbrake.
  • Not compatible with the ClubSport USB Adapter. Use the included USB cable (PC only).
