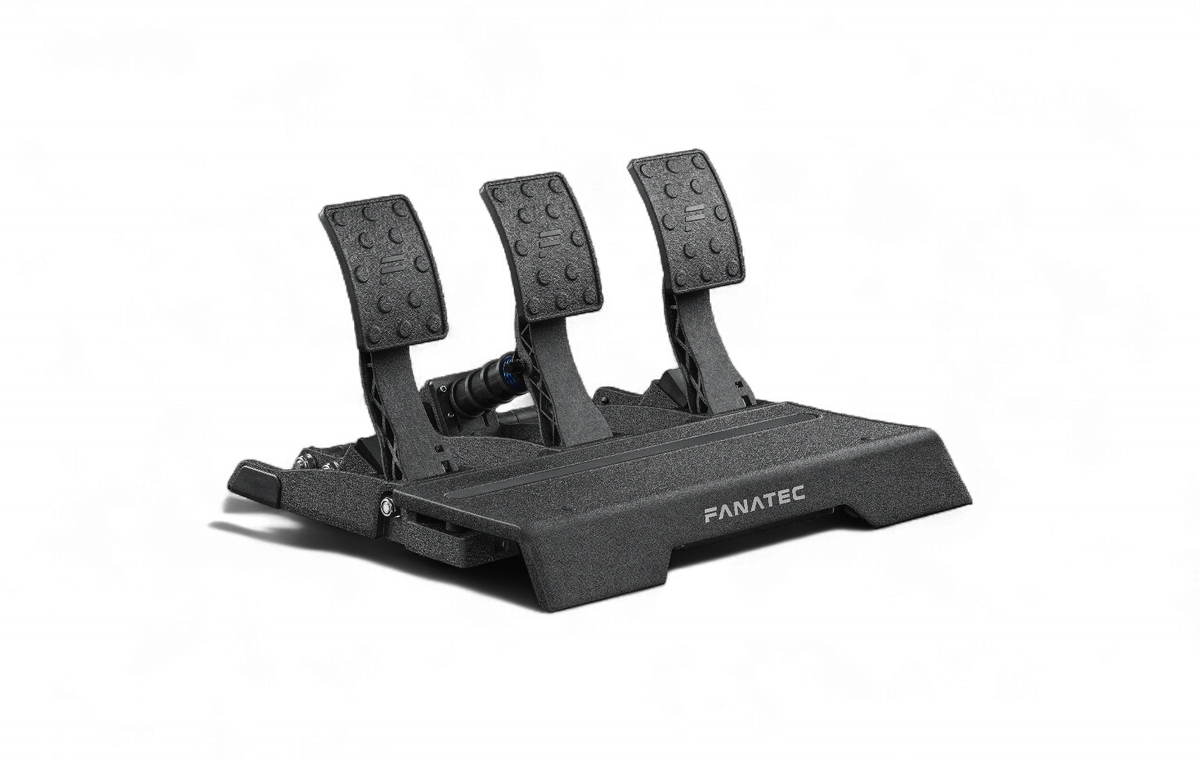

Fanatec CSL Elite V2 Pedals

€299

The Fanatec CSL Elite V2 Pedals are the evolution of one of the most popular sets in sim racing. They feature a redesigned load cell brake and Hall sensors on the throttle and clutch for superior precision. The pedals and heel plate are made from cast and machined aluminium, and the rear reinforcement provides greater stability under high loads, while the new load cell brake uses a tool-free adjustable elastomer configuration, with a coil spring that simulates disc compression. Brake sensitivity can be adjusted in the Fanatec software.

In stock — ready to ship

Fanatec CSL Elite V2
€299
What's in the box?
  • Pedals CSL Elite V2 (fully assembled three-pedal set)
  • Alternative elastomers and metal spring for brake adjustment
  • 2 brackets for mounting the brake pedal
  • 1 RJ12/RJ12 connection cable (~3 m)
  • 1 USB cable (~3 m)
  • 2 spanners (13 mm)
  • 1 Allen key (6 mm)
  • 1 Allen key (4 mm)
  • 1 Quick start guide
  • 1 sticker set
View details
  • Fanatec CSL Elite V2
  • Fanatec CSL Elite V2 rear
  • Fanatec CSL Elite V2 3 pedals
  • Fanatec CSL Elite V2 elastomer
1 / 1
Press & drag to view
sfondo_1 p1: ClubSport-DD-Sfondo sfondo_1 p1: ClubSport-DD-Sfondo

Better than ever

The acclaimed pedal set returns in a refreshed version, with a completely redesigned load cell brake, Hall sensors on throttle and clutch, and numerous design improvements for even more precise and realistic performance.

  • Fanatec CSL Elite V2 3 pedali
Fanatec CSL Elite V2 Metallo

Magnetic sensors

Both the throttle and the brake use high-precision Hall effect sensors.

Magnetic position sensing eliminates mechanical contact, preventing sensor wear and ensuring consistent performance over time.
Fanatec CSL Elite V2 Sensore Magnetico

Solid metal construction

The arms, pedal plates and heel rest are made of cast and machined aluminium, with a powder-coated finish for maximum resilience.

Additional rear bracing increases rigidity and stability, even under high loads.
Sfondo Fanatec

Brake with confidence

The brake pedal has been completely redesigned and fitted with a new custom load cell sensor, for a more realistic and precise response.

  • Fanatec CSL Elite V2 Sensore Hall

    Muscle memory

    The load cell sensor measures pressure rather than pedal position.

    Calibrated to a real-world 90 kg (adjustable), it offers authentic resistance that trains your muscle memory, letting you brake with confidence and precision in every session.

  • Fanatec CSL Elite V2 Elastomero 1

    Two-stage braking action

    The tool-free adjustable elastomer stack incorporates a coil spring that simulates the initial contact between pad and disc.

    The stiffness of the pedal travel can easily be customised by choosing from the included elastomer springs.

Sfondo Fanatec Sfondo Fanatec

Drive your way

The Fanatec CSL Elite V2 Pedals can be connected directly to any compatible Fanatec base via the included RJ12 cable, or used as a standalone USB device on PC with the supplied USB cable.

The pedal positions can be adjusted sideways on the heel rest, and the pedal set can easily be configured as a two-pedal set.

  • immagine_6

    Choose your pedal surface

    The removable rubber covers let you choose between high and low grip.

    For example, you might prefer more grip on the brake pedal to handle high forces, or a smoother-sliding throttle for fluid, controlled corner exits.

  • immagine_7

    Electronic adjustment

    Brake force can be easily adjusted via the Fanatec Tuning Menu (or the Fanatec Control Panel on PC).

    You can also manually calibrate all three axes for complete customisation.

Technical specifications

Platforms
PC, PS4 Ready, Xbox One Ready
Load cell brake
Yes
Adjustable brake sensitivity
Yes
Degressive clutch
No
Brake ABS vibration
No
Throttle vibration
No
Horizontal adjustment
Yes
Vertical adjustment
No
Pedal faces
Rubber
Sensors
Contactless magnetic
USB connectivity
Direct
Main material
Aluminium
Warranty
Three years (in accordance with applicable national regulations)
Key features
  • Pre-assembled, plug-and-play 3-pedal set
  • Contactless Hall sensors on clutch and throttle
  • 90 kg load cell brake with spring and elastomers for a realistic feel
  • Adjustable stiffness with additional elastomer springs (included)
  • Configurable as a two-pedal set
  • Removable rubber covers on the pedals
  • Cast and machined aluminium construction, with a powder-coated finish for maximum durability
  • RJ12 or USB connection
Compatibility

Compatible Platforms

  • PC
  • PlayStation®5
  • PlayStation®4

Compatible peripherals

  • All CSL Elite Bases
  • All ClubSport Bases
  • All Podium Bases
  • CSL DD Bases
  • Gran Turismo DD Pro Wheel Base
  • Handbrake ClubSport
