Other than being inspired by real race cars, the Asetek Forte underwent in-depth tests held by real racers and professional sim racers, whose feedback helped in perfecting its design and manufacturing.
If you are on the hunt for the best brake pedal feeling without having to resort to a hydraulic system, look no further! The M.L.C.P.C. system of the Forte pedals can be adjusted from soft to stiff and maintain those regulations.
If you’re looking for the same feeling you would experience on the brake pedal of a real race car, without having to resort to a hydraulic system, look no further! The M.L.C.P.C. system of the Forte pedals can be adjusted in stiffness to satisfy all your needs.
The adjustments of the brake will hold over time, contrary to many other sim racing pedals on the market, where the stiffness and the feeling will degrade with time and usage.
It is not a coincidence that a driver wants a stiff brake pedal which, if fully pressed, gives the sensation of pushing against a wall. Furthermore Forte, even if it’s not an hydraulic pedal set, can offer that same “hydraulic feeling” of a fully engaged brake pedal, where it’s stil possible to modulate the pressure, thanks to a two-stage system, inspired by the Invicta pedals. In real life you have the sensation that the brake pedal can sustain further pressure when pressed at 100%, just like when the fluid is compressed in a hydraulic system.
Why is it important? When you apply pressure to the brakes as late as possible, you want to take full advantage of your muscle memory, in order to trail brake into the corner. By using muscle memory your brain is programmed to be able to brake at the same spot lap after lap. On the contrary, you can’t do this with a soft pedal, where you are limited to only rely on the position of the foot/pedal itself, which doesn’t allow your brain to replicate the braking with the same accuracy, therefore losing important tenths of a second on your lap times.
Just imagine driving on a track with 10 corners. Gaining one tenth of a second under braking means that you can potentially gain one second per lap…
The design of the Forte was thought with the experience of the end-user in mind, where every adjustable element is colored in orange, in order to guarantee an intuitive use, and quick tool-less adjustments. The Forte pedals are fully adjustable in order to help awaken the driver in you. This can be achieved by customizing the settings of pedal travel and stiffness, according to your personal preference.
The characteristics of Forte pedals
Brake System
- The M.L.C.P.C. (Mechanical Load Cell Powered Cylinder) patent-pending brake cylinder gives you the experience of driving a real race car
- Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point
- Sustainable manufacturing with 100% on-site re-use of waste material
- Load cell will sense up to 180 kg of force on the face of the pedal plate
- Two-stage system that mimics the hard- and soft stages of a real race car
- Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and expansion chamber to mimic race car feel as well as not overloading the elastomers
- Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
- Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!

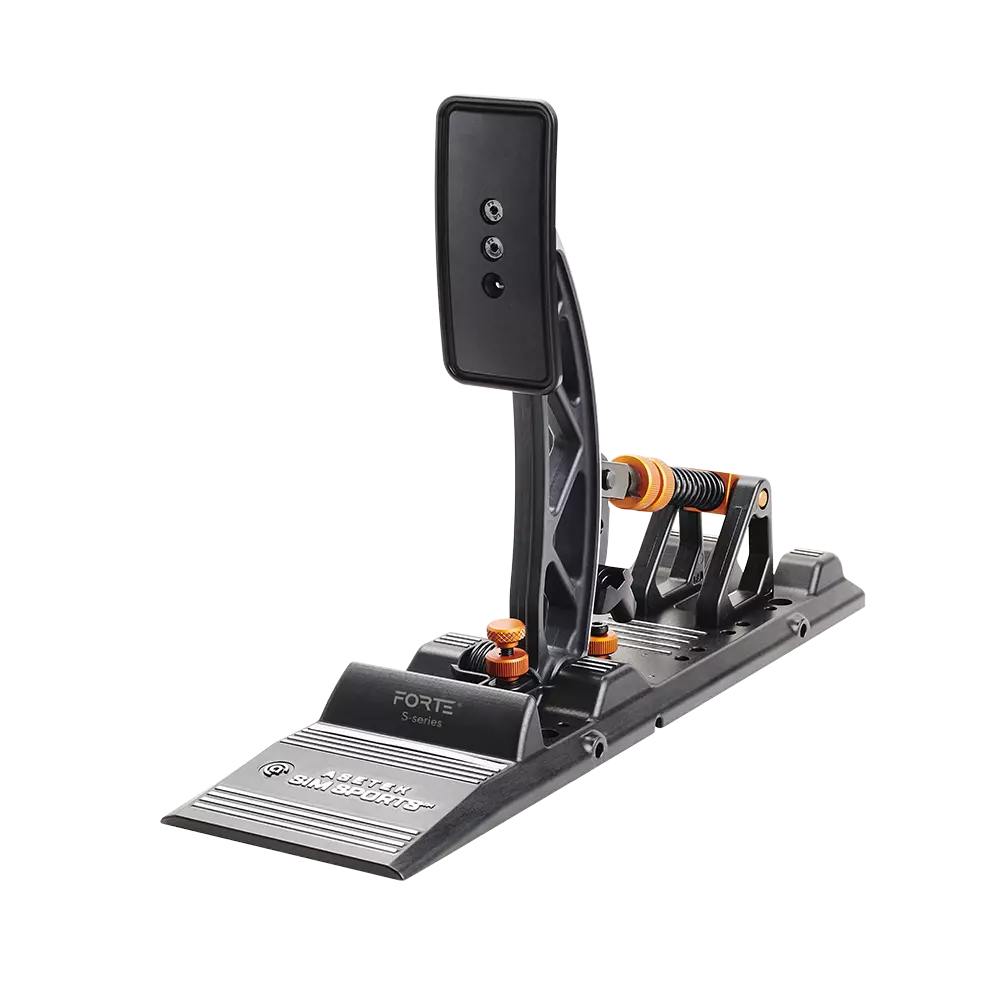

Throttle System
- Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
- Sustainable manufacturing with 100% on-site re-use of waste material
16-bit magnetic wireless hall TPS (Throttle Position Sensor) with no mechanical wear and zero maintenance - Custom throttle curves can be adjusted and 100% customized in the RaceHub software to mimic a real race car butterfly opening. For example, a linear curve in dry conditions and a progressive in wet conditions
- Adjustable pedal hardness
- Adjustable pedal travel
- Adjustable pedal stop
- Interchangeable spring for bigger step in pedal hardness
- Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
Pilot software adjustments
We know how important it is to adjust every little detail of your pedalboard to unlock your potential. Asetek’s proprietary software, Race Hub, puts a multitude of adjustments at your fingertips to give you control over every input you give during your virtual race.
Advanced calibration
Led Settings
Pedal mapping
Visual adjustment
To get into simracing as a protagonist, here’s to you the Forte by Asetek Simsports pedalboard
“Forte Load Cell pedals use many of the same design principles and philosophy found in the Invicta design with the advantage of a much more affordable price.”
